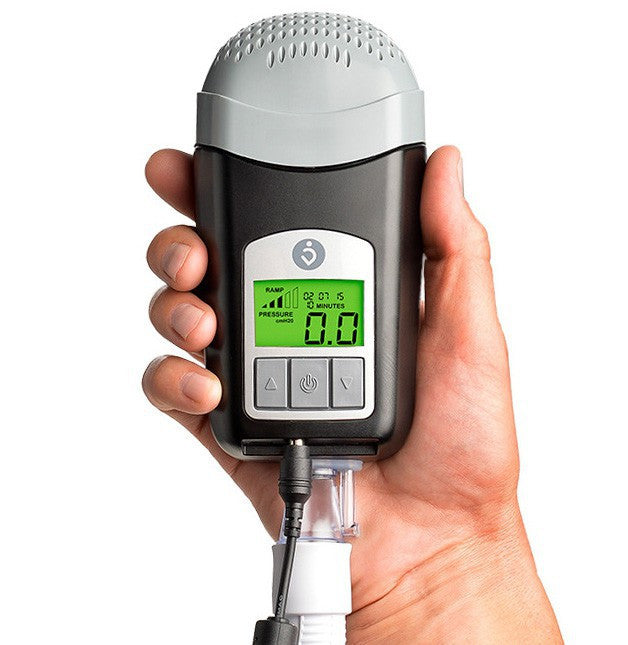

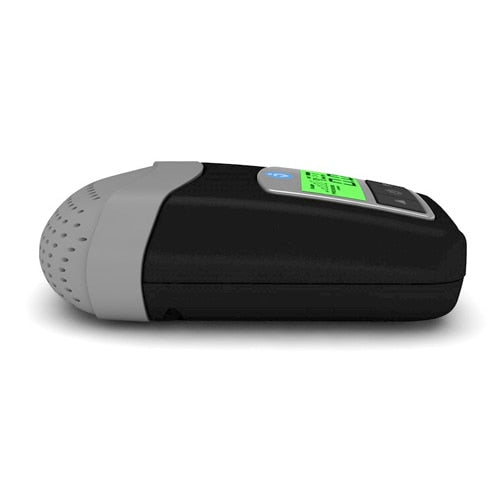

Human Design Medical Z1 Auto Portable CPAP Machine
Human Design Medical Z1 Auto Portable CPAP Machine
- Fast Shipping
- Carbon neutral
- Secure payments
The Z1 Auto builds on the form-factor of the Z1™ CPAP to deliver the world’s smallest, lightest, most integrated auto-cpap machine. At only 10 ounces the Z1 Auto is the best machine we have released and when integrated with the PowerShell™, the Z1 Auto delivers an amazing night’s sleep on a single battery charge.
Light, portable, and integrated auto cpap.
The Z1 Auto builds on the form-factor of the Z1™ CPAP to deliver the world’s smallest, lightest, most integrated auto-cpap machine. At only 10 ounces the Z1 Auto is the best machine we have released and when integrated with the PowerShell™, the Z1 Auto delivers an amazing night’s sleep on a single battery charge.
Why is the Z1 Auto better?
The new Z1 Auto is an auto-cpap version of the Z1 cpap machine. With its auto-cpap algorithm, the Z1 Auto responds to your breathing pattern thousands of times per night and actually adjusts to your needs in real-time. The Z1 Auto is a great auto cpap that caters to your needs, learns from your breathing, and delivers a great night’s sleep.
| FEATURES |
Z1 Auto CPAP
The Z1 Auto is an auto-cpap machine that actually adapts to your breathing requirements thousands of times per night. By reacting to your requirements- rather than just delivering one constant pressure- the Z1 Auto delivers therapy at lower overall pressures and delivers a better, more natural breathing experience.
Very quiet
For a travel cpap the Z1 Auto is very quiet. The FDA testing revealed a sound level of 26dB using the standard testing methods although we have heard of slightly louder results from users.
Extremely light. Only 10.4 oz
The Z1 Auto is the lightest auto-cpap machine available anywhere. At only 10 ounces it is a great everyday machine that is also ideal for travel.
Optional integrated battery
The Z1™ Auto cpap has an optional integrated battery system that we call the PowerShell™. It delivers a full night of cord-free power on a fully-charged battery. If you would like to purchase the Z1 Auto with an included PowerShell- and save $120- you should purchase the Z1 Auto Unplugged Bundle
Free iOS mobile app for data and remote control
The Z1 Auto cpap is data-capable and records all information on events and compliance. Download the free Nitelog™ mobile app for iOS and sync directly to your device with Bluetooth®. Review your data or share it with your doctor directly from the app. Nitelog™ can also serve as a remote control for your Z1 Auto.
| PHYSICAL SPECIFICATIONS | |
| Size (Approx) | 6.48 x 3.30 x 2.02 Inches |
| Weight (Approx) | 10.4 Ounces |
| Materials | Not Made with Natural Rubber Latex |
| PERFORMANCE SPECIFICATIONS | |
| Therapy Modes | APAP (Auto-Adjusting CPAP), APAP with Ramp, CPAP, CPAP with Ramp, Standby |
| Pressure Range | 4-20 CM H2O |
| Default Settings | 4-10 CM H2O, Ramp 15 Minutes, Ramp Start Pressure 4.0, Z-Breathe APAP-3, BlueTooth On |
| Ramp | User Adjustable 0 to 45 Minutes |
| Ramp Start | 4 to Minimum Pressure |
| Sound Levels (Average) | Less Than 26 dBA |
| Altitude Adjustment | Automatic Up To 8000 Feet |
| Leak Compenstation | Automatic |
| Auto On/Off | Not Applicable |
| Comfort Technology | Z-Breathe (Settings = 1 Minimum, 2 Moderate, 3 Maximum) |
| Rainout Reduction | Not Applicable |
| Filters | Disposable (Ultra Fine) |
| COMPATIBILITY | |
| Masks | Compatible with all CPAP & BiPAP Masks |
| Tubing | The Z1 Auto APAP includes a Custom Tube Adapter compatible with all Standard and Performance CPAP Tubing. For proper operation the Tube Adapter MUST ALWAYS be in place when using the Z1 Auto device. |
| Humidifiers | Heat Moisture Exchanger (HME) Included for Optional Use |
| Supplemental Oxygen | NOT Compatible with Supplemental Oxygen |
| THERAPY DATA & COMPLIANCE | |
| Data Storage | 30 Days of Storage Onboard |
| Data Included | Events and Time of Use |
| Data Viewing | Free NiteLog App (iOS App) |
| POWER SPECIFICATIONS | |
| AC (Wall) Power | AC power 100-240V, 50-60Hz (Auto Sensing) |
| AC Power Supply Size | 3.75 x 1.75 x 1.25 Inches (Approx) |
| AC Power Supply Weight | 9.5 Ounces (Approx) |
| AC Power Cord Length | 10 Feet 4 Inches (Approx) |
| Power Consumption | 20-35 Watts |
| DC (Mobile) Power | Optional Accessory |
| DC Power Supply Weight | 3 Ounces (Approx) |
| DC Power Cord Length | 6 Feet 6 Inches (Approx) |
| DC Power Cord Fuses | 5 Amp |
| DC Power Input | 12 Volts |
| Battery Power | Optional Integrated PowerShell & Battery Module |
| BATTERY SPECIFICATIONS | |
| Battery Type | 14.4v Lithium Ion Battery Pack |
| Battery Capacity | 45 Watt Hours |
| Battery Size |
PowerShell = 6.00 x 4.25 x 3.00 Inches Battery Module = 4.00 x 3.75 x 1.50 Inches (Approx) |
| Battery Weight |
PowerShell = 9.8 Ounces Battery Module = 9.0 Ounces (Approx) |
| Battery Run Time (Avg) | 1-2 Nights Per Battery Module Depending on Settings. Lower pressure settings will increase run times and higher pressure settings will decrease run times. At a pressure setting of 6CM most users will achieve more than 13 hours of run time per battery. At a pressure setting of 14CM most users will achieve more than 8 hours of run time per battery. |
| Recharge Time | Up to 8 Hours When Fully Depleted (Typical Per Battery) |
| Battery Life | 300 Cycles (Average) |
| Battery Notes | For best performance Battery Modules should be fully charged prior to first use. Batteries recharge in the Z1 PowerShell when connected to AC or DC Power. In-house tests at DirectHomeMedical show that using a 4-foot tube and low Z-Breathe settings can increase overall battery run times. For complete care and use instructions, refer to the manual that came with your Z1 device or PowerShell. |
| IN THE BOX |
- Z1 Auto cpap machine
- AC Power Supply
- 4′ slimline tubing
- 1 HME
- 1 Z1 Filter
- 3 Year Warranty
