Detecto MedVue Digital Weight Indicator for International

Detecto MedVue Digital Weight Indicator for International

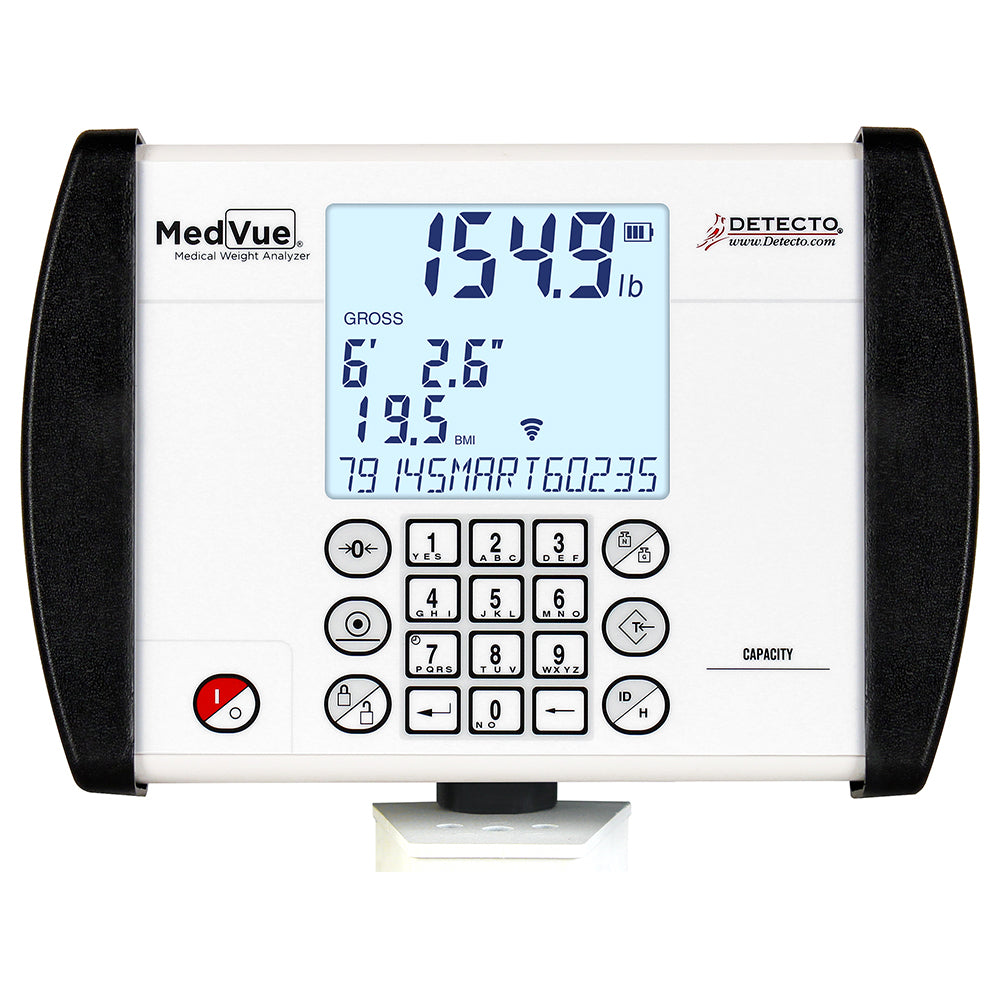

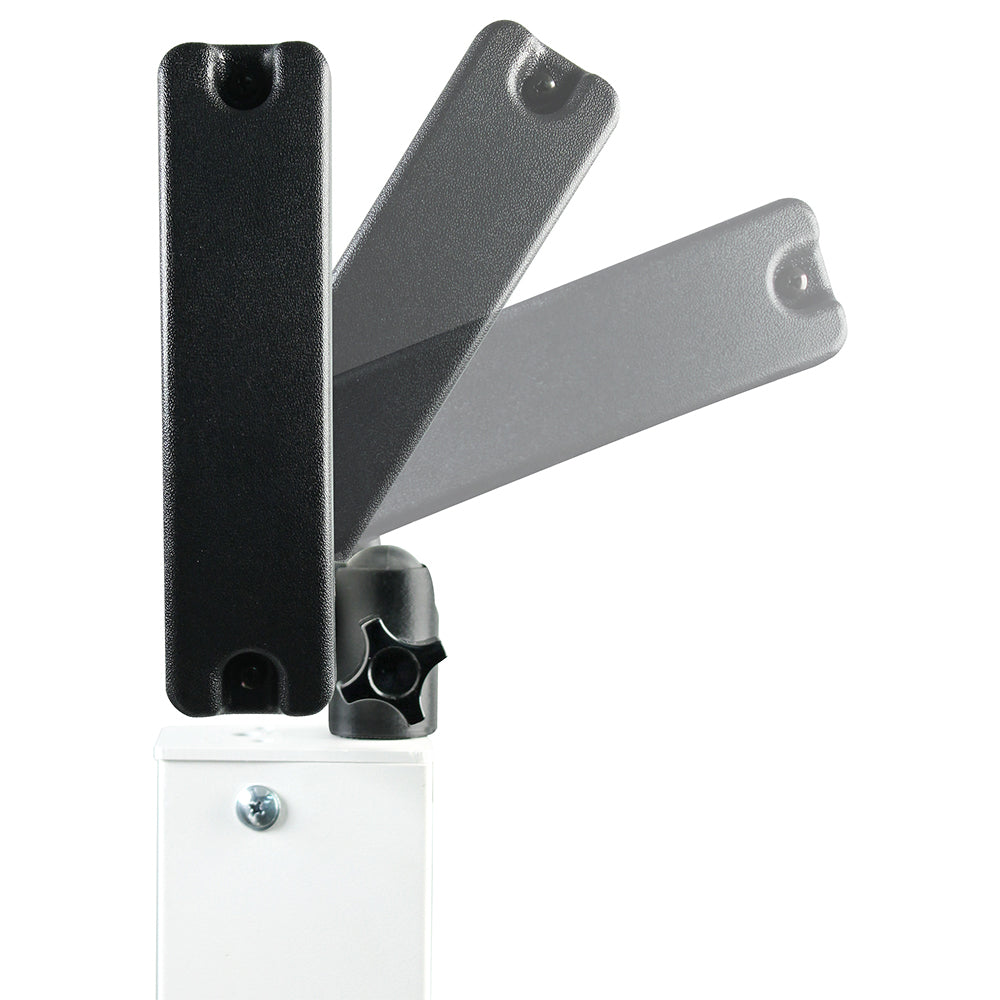

DETECTO's MedVue medical weight analyzer is utilized on select clinical scales, including DETECTO's wheelchair, bariatric, and stretcher scales. The MedVue features a vivid 3.5-in-wide by 3-in-high backlit LCD display screen with nearly 1-in-high weight digit readouts for easy visibility. The MedVue's 350-degree swivel mounting bracket allows the display to be tilted and rotated into position wherever it is the most convenient for the medical professional and/or patient to view. A host of other benefits include units locking into kilograms or pounds, 14-digit patient ID which may be entered via the alphanumeric keypad, 99 stored tare weights, 200 stored transactions, 1LOOK display, and Wi-Fi/Bluetooth models are available with up to 150 ft. wireless range. The MedVue offers a host of both wired and optional wireless connectivity for sending measurement data to multiple devices all at once.

Features

• Wi-Fi/Bluetooth models available
• Weight, Height, and BMI all displayed simultaneously
• 6 C batteries (Not Included)
• BMI calculation
• EMR/EHR ready
• Nearly 1-in-high weight readouts
• Backlit Blue display
• NTEP legal for trade

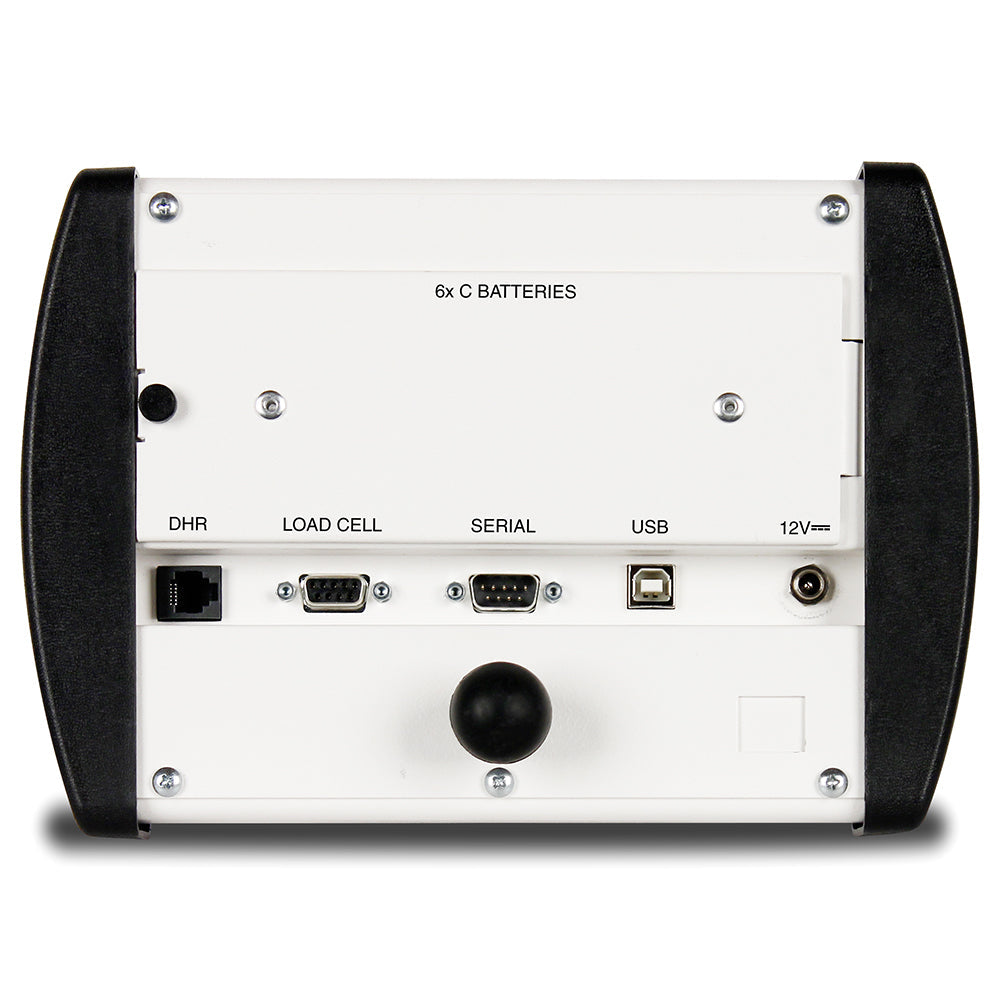

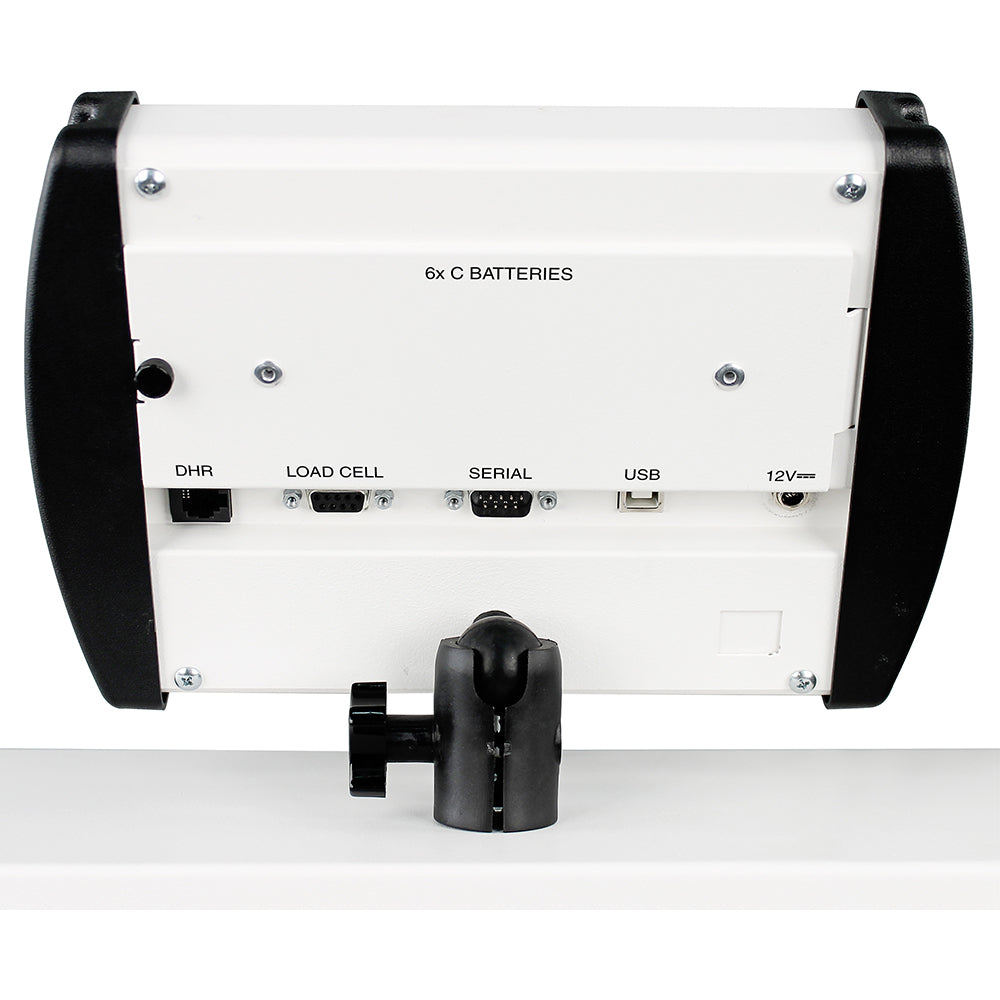

• RS232 serial and USB ports standard
• Sturdy steel construction

Standard Features

• Units Locking
• Auto Shut-Off
• Selectable Sleep-Mode
• Selectable Filtering
• 99 Tare Storage
• Serial I/O (Input/Output)
• USB Device Port
• Height Rod Port (for Optional Detecto Digital Height Rod)
• 200 Transactions Stored

Optional Features

• MVIP Ethernet Option
• Detecto DHR (Digital Height Rod)
• MV1PWR, 12VDC AC Power Adapter
• Welch Allyn WACONNECT

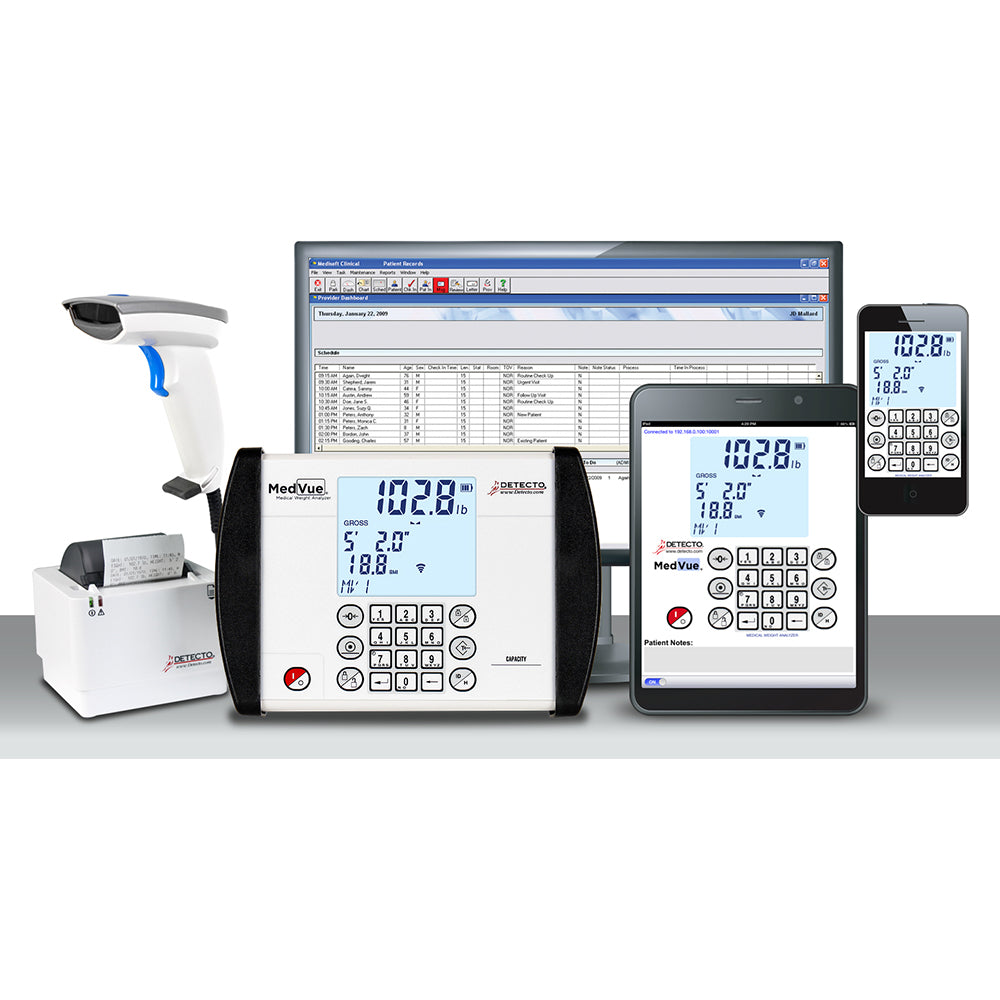

Connect

• Printers
• PCs
• Networks
• Tablets
• Bar Code Scanners
• Even Mobile Phones

Specification

• Brand: Detecto
• Product Type: Digital Weight Indicator
• Location: International
• Battery Life: 7,560 Weighments (with Backlight Fully ON) / 10,620 Weighments (with Backlight Fully OFF)
• Sensitivity: 0.5 u V/Division (0 to 3.0 mV/V), Class III
• Operating Temperature: 14ºF to 104 ºF (-10 to +40 ºC)
• Signal Input Range: 0 to 15mV max.
• Transducer Excitation: 5.0 VDC
• Number of Load Cells: up to 4 each 350 ?
• Load Cell Cable Length: 30 Feet (9 Meters) Max.
• Capacities Weight: 10,000 Divisions Commercial - Height: 0 - 9' 11.9" - BMI: up to 999
• Resolution: 10,000 Divisions
• NTEP: Certificate of Conformance Number 13-011
• Division Value: 1, 2 or 5 x 1, 0.1, 0.01, 0.001
• Sample Rate: 1 to 100 samples per second selectable
• Auto Zero Range: 0.5 or 1 through 9 divisions
• Weighing Units: Pounds (lb), Pounds/Kilograms (lb/kg), Kilograms (kg) and Kilograms/Pounds (kg/lb)
• Keyboard: Membrane Type with 19 Keys
• Enclosure Size: 9.8" (W) x 6.8" (H) x 1.8" (D)
• Construction: Painted Steel

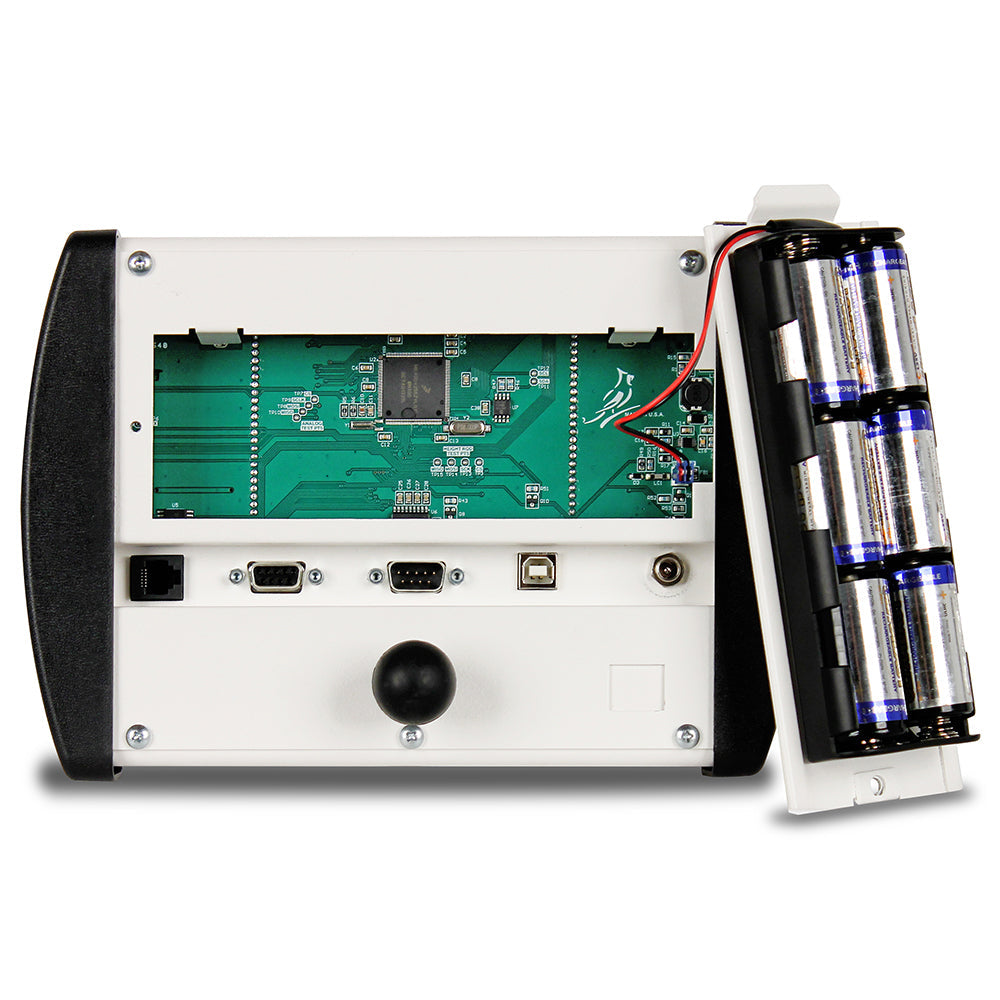

• Power Requirements: 6 “C” cell Ni-Cad or NiMH Batteries (not included) OR an Optional 110-240 VAC 50/60 Hz 12 VDC 1.25A Wall Plug-in AC Power Adapter (DETECTO part Number MV2PWR)

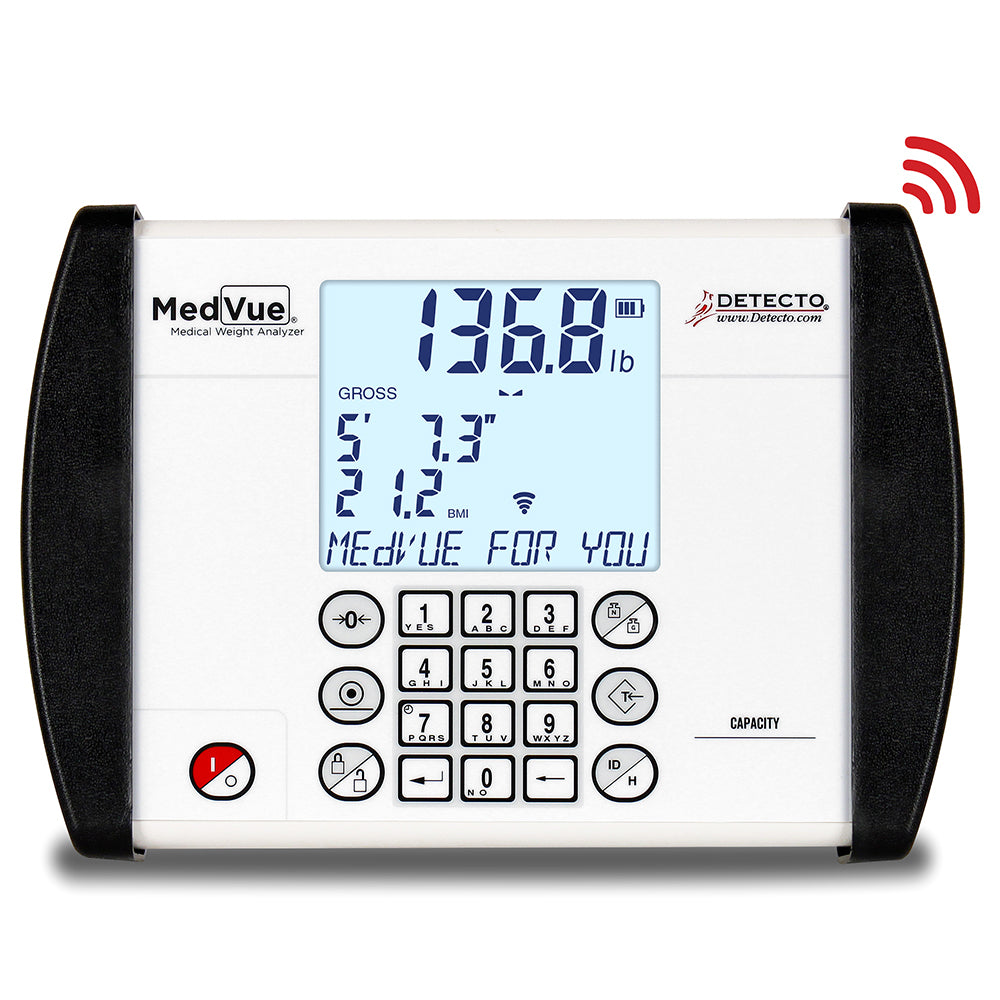

• Wi-Fi/Bluetooth Connectivity: Available on models MV1C (North America) and MV2C (International). Up to 150 ft. wireless range (depending on environmental factors).
• Units Locking: Established upon initiliazation and user selects either LB or KG
• Overall LCD Display Size: 3.5" (W) x 3" (H) Backlit Blue LCD
• Weight Display: 5 Digit, Seven Segment, 0.875"
• Height Display: 4 Digit, Seven Segment, 0.5" High LCD
• Body Mass Index Display: 3 Digit, Seven Segment, 0.5" High LCD
• ID Display: 14 Digit, 14 Segment, 0.35" High LCD
• LCD Viewing Range: Up to 30 Feet / 10 Meters for Weight Digits

Product Documents

Data Sheet
