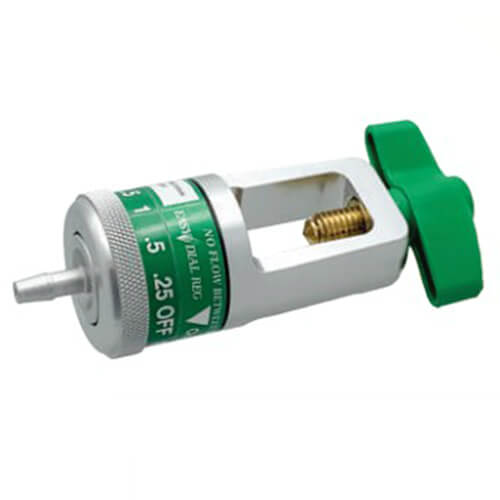

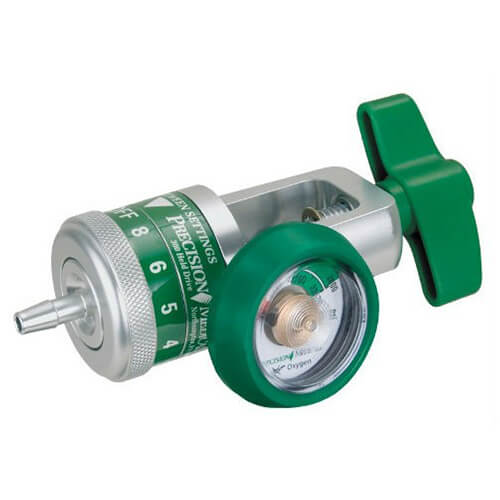

Precision Medical EasyDial Reg 870 Yoke Style 0-8 LPM Oxygen Regulator

The unit's easily accessible flow adjustment knob is large and knurled making flow adjustment a cinch, even for the physically challenged. The easy dial reg features a built-in pressure relief valve, as well as a protected contents gauge. The low force Viton yoke seal provides a better tank-to-reg seal. Unique design minimizes normal flow variation that occurs as tank pressure drops.

Features

• Reduced vibration for accurate readings
• Regulate the flow of oxygen as needed
• Includes metal ring
• Knurled adjustment knob
• Low force Viton yoke seal provides a better tank-to regulator seal
• Ergonomic T-handle
• Lightweight aluminum body and cap
• Clearly marked flow settings
• Contents gauge on the front and the flow gauge on the top

Specifications

• Brand: Precision Medical
• Product Type: Oxygen Regulator
• Length: 4.25"
• Flow Range: 0 - 8 L/min
• Oxygen Settings: OFF, 0.25, 0.50, 1, 1.5, 2, 2.5, 3, 4, 5, 6, and 8
• CGA Connection: Yoke Style (870)
• Accuracy: ±10% of indicated setting @ 70°F (21°C)
• Storage Temperature Range: -4°F (-20°C) to 140°F (60°C)
• Inlet Pressure Range: 300 - 3000 psi (2068 - 20684 kPa)
• Ignition and Fault Tolerance: Meets ASTM G175-03
• Weight: 0.49 lbs
• Warranty: 5-Years

Product Documents:

Data Sheet

User Manual
