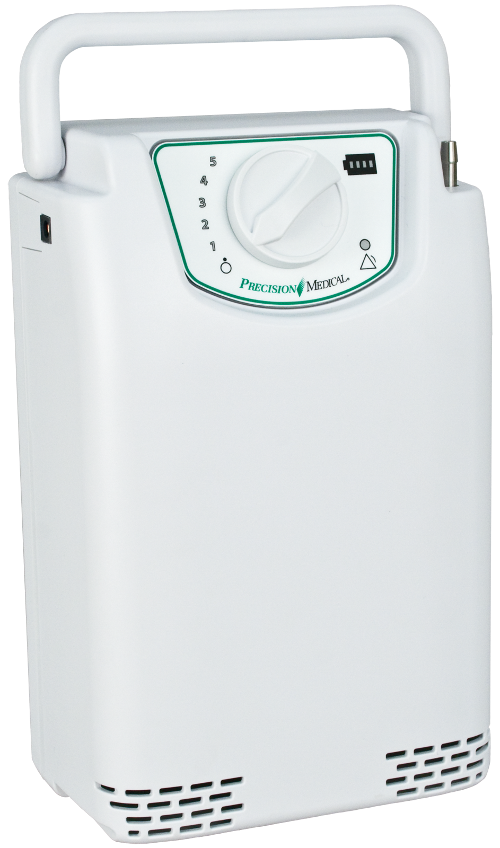

Precision Medical EasyPulse Portable Oxygen Concentrator (POC) PM4150
- EasyPulse Lithium Ion External Rechargeable Battery / YES, I have a valid Prescription.
Perfect for Non-Delivery Oxygen Model When paired with the EasyFlow5 concentrator, The EasyPulse Portable Oxygen Concentrator (POC) is the perfect product to help you reduce costly cylinder deliveries and allow for your patients ease of mobility at the same time. We have meshed the best of 2 products together, the most used oxygen conserver on the market with an oxygen concentrator to produce the EasyPulse POC.
Easy to Use The EasyPulse Portable Oxygen Concentrator has an easy user interface. Just like the stationary concentrator patients use at home, one knob easily sets the oxygen flow. Unlike many other POC's, there are no confusing electronic controls. An easy to read battery level indicator and an alarm LED are also included.
Compact and Lightweight The EasyPulse POC is the lightest 5 Liter portable concentrator on the market, weighing only 6.8 pounds in a package that is only 10.1 in high x 6.5 in wide x 4.5 in deep.
CMV Technology Precision Medical's patented Controlled Minute Volume (CMV) oxygen conserving technology delivers a consistent amount of oxygen per minute to the patient in the first half of inspiration, regardless of breath rate. The delivered oxygen volume automatically adjusts to the patient's breath rate, maintaining minute volume.

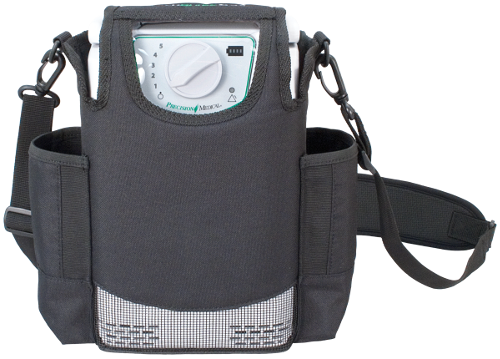

Versatile Can be used both in and out of the carry bag provide with each unit as well as the optional premium bag that provides even more protection against possible damage while allowing whisper quiet operation.
Low Maintence Only one filter that is easily cleaned by the patient.
Excellent Battery Life The EasyPulse Portable Oxygen Concentrator standard internal battery lasts over 3 hours at setting two. The unit can also be used with the AC cord or with the DC car adapter.
TECHNICAL SPECIFICATIONS
Dimensions:
Height: 10.10 in (25.7 cm)
Width: 6.5 in (16.5 cm)
Depth: 4.5 in (11.4 cm)
Weight:
Device: 6.6 lbs (2.98 kg)
Shipping: 12.15 lbs (5.5 kg)
Electrical:
AC: 100 - 240 VAC (1.0 A @ 120 VAC)
DC: 11 - 16 VDC (5.0 A @ 12 VDC)
Internal Battery Average Charge Time: 4 Hours
Oxygen Concentration:
87 to 95% @ 5 l/min setting within 4 to 6 minutes
Environmental Conditions:
Temperature Range: 41°F to 104°F (5°C to 40°C)
Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
Relative Humidity: Up to 95% Non-condensing
Altitude: Sea Level to 14,000 ft. (4,267 m)
Outlet Temperature:
Within 2°F (1.1°C) of ambient
Noise level:
44 dBA @ setting 2
Pulse Settings:
Setting
1
2
3
4
5
Volume
12cc ± 2cc
19cc ± 3cc
26cc ± 4cc
33cc ± 5cc
39cc ± 6cc
Peak Flow (l/min)
8.6 ± .3
9.9 ± .2
10.5 ± .3
11.4 ± .2
11.2 ± .2
Minute Volume
240 ± 15%
380 ± 15%
520 ± 15%
660 ± 15%
780 ± 15%
Battery Duration
4.7 hrs
3.4 hrs
2.7 hrs
2.0 hrs
1.6 hrs
External Battery:
Setting:
1
2
3
4
5
Run Time:
4.7 hrs
3.4 hrs
2.7 hrs
2.0 hrs
1.6 hrs
Average Charge Time: 3.5 hrs
Trigger Delay:
Sensitivity: -0.4 cmH20 @ 20 BPM
Delay Time: ≤0.12 seconds @ 20 BPM
Cannula:
Maximum 7 ft long standard adult single lumen nasal cannula
Equipment Classification:
Class II -with respect to protection from electrical shock
Type BF -degree of protection against electrical shock
IP21 -degree of protection against ingress of solids/liquids
Mode of Operation:
Continuous

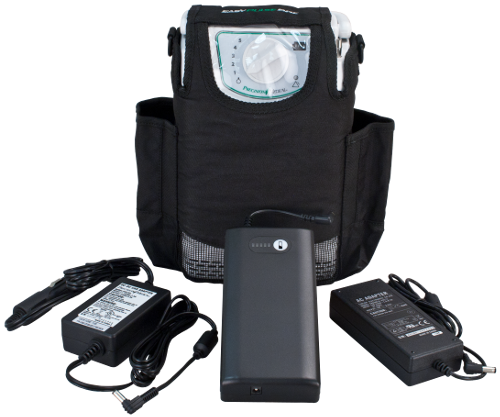

INCLUDES
EasyPulse Portable Oxygen Concentrator (PM4150)
AC and DC Power Supplies
Cords.
Carry Bag
6 Cannulas
Please note - Any smoking while using the unit or evidence that unit has been used in a smoke filled environment will void the warranty.
