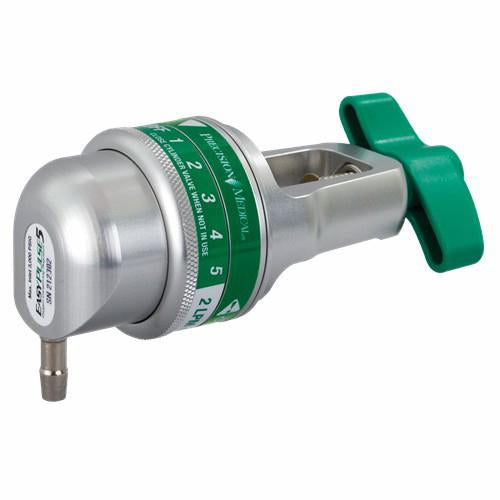

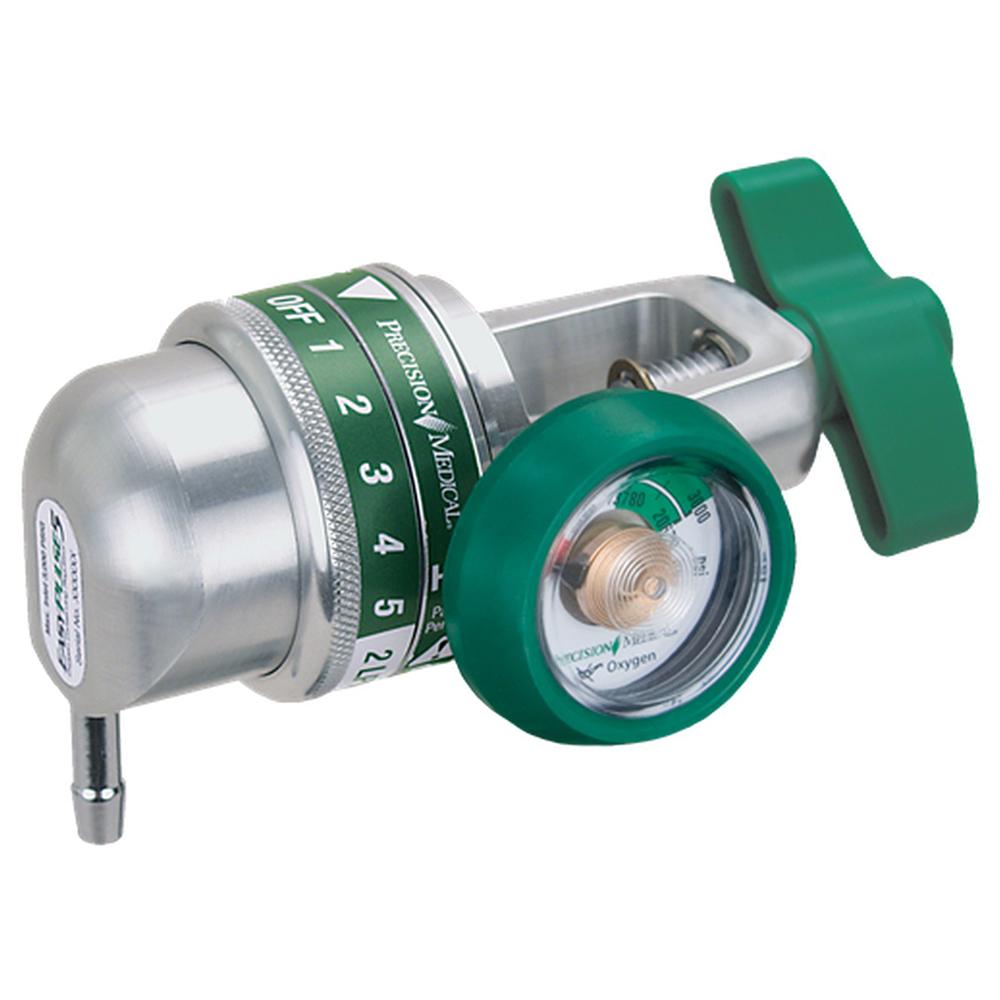

Precision Medical EasyPulse5 870 Post Valve Oxygen Conserving Regulator

EasyPulse5 Oxygen Conserving Regulator is the smallest and lightest oxygen conserver available weighing as little as 9.9 oz. A single dial control and ergonomically designed T-Handle/Hand Tight Nut make setting and connecting EasyPulse5 easy for any user.

With a conserving ratio of up to 5.7 to 1, EasyPulse5 reduces wasted oxygen and increases time away from home. Its proven reliability, easy to use design and no need for batteries, make EasyPulse5 the right choice.

Features

• CGA 870 post valve connection
• Pulse flow settings 1,2,3,4 and 5
• Continuous flow setting of 2 l/min
• CMV technology
• No batteries required
• Oxygen dose delivered in first third of inspiratory phase which ensures no wasted oxygen
• Minute volume is controlled to deliver only the prescribed amount of oxygen
• Fits all CG 870 post oxygen tanks

Specifications

• Brand: Precision Medical
• Product Type: Oxygen Conserving Regulator
• Length: 4.8"
• Width: 2.6"
• Height: 2.5"
• Weight (198705/198705NG): 0.61/0.58 lbs
• Inlet Pressure Range: 300 - 3000 PSIG
• Internal Regulated Pressure: 50 PSIG
• Pulse Settings: 1, 2, 3, 4 & 5 L/min
• Continuous Flow Setting: 2 LPM
• Savings Ratio: Up to 5.7 to 1
• Cannula Requirements: Max. 7 ft. long single lumen nasal cannula
• Cylinder Connection: CGA 870 Post Valve
• Operating Temperature: 35°F - 105°F (1.7°C to 40.6°C)
• Operating Altitude: 0 - 10,000 ft
• Storage Temperature: -40°F - 140°F (-40°C to 60°C)
• Storage Humidity: Up to 95% non-condensing
• Warranty: 2-Years
